Monitoring Google Analytics with NetCrunch

We will show you a small example which monitors the page views of your webpage. For more information about what is possible to monitor with Google Analytics please visit the Google Analytics webpage.

For monitoring information from Google Analytics with NetCrunch you can use different approaches.

We will show you a small example which monitors the page views of your webpage. For more information about what is possible to monitor with Google Analytics please visit the Google Analytics webpage.

Setting up Google Analytics

If you have Google Analytics already running you can skip to section Setting up the API.

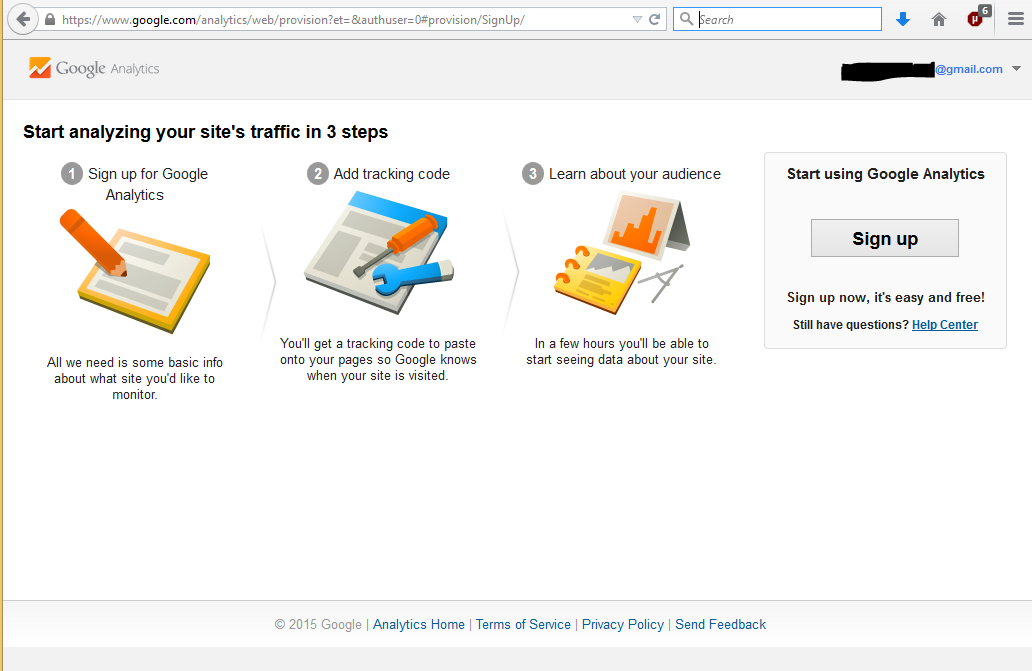

Sign up for Analytics with your Google Account.

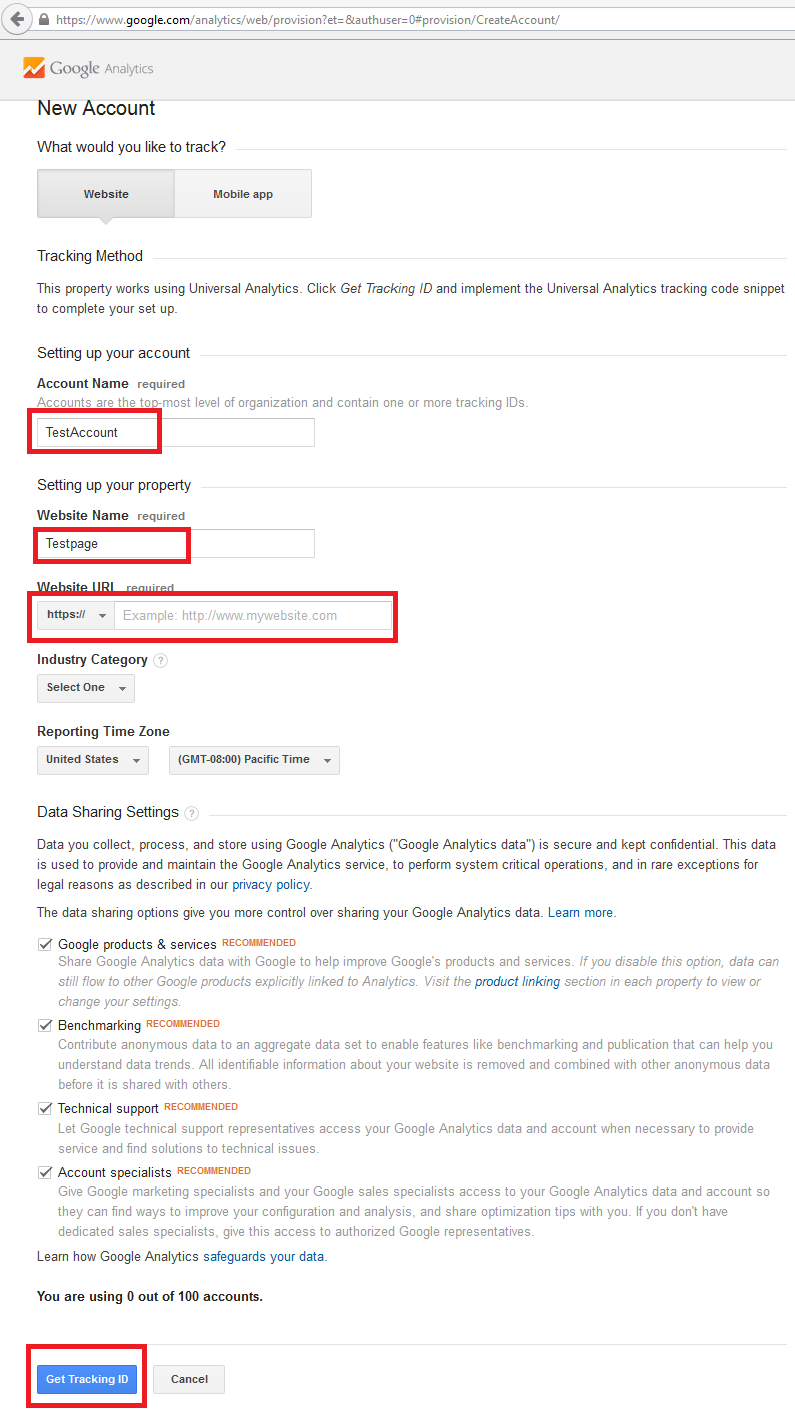

Create a new account as shown in the screenshot.
Agree to the terms.

The following page will show you Tracking ID which you need to setup analytics on your webpage. Copy the JavaScript code and include it in the header of your page. e.g.:

 <!DOCTYPE html>
     <html>
     <head>
           <!--your header information -->
           <!-- Google Analytics -->
     <script>
        (function(i,s,o,g,r,a,m){i['GoogleAnalyticsObject']=r;i[r]=i[r]||function(){ (i[r].q=i[r].q||[]).push(arguments)},i[r].l=1*new          Date();a=s.createElement(o),  m=s.getElementsByTagName(o)[0];a.async=1;a.src=g;m.parentNode.insertBefore(a,m)  })(window,document,'script','//www.google-analytics.com/analytics.js','ga');
       ga('create', 'UA-XXXX-Y', 'auto');
       ga('send', 'pageview');
       <!-- End Google Analytics -->
     </script>
 </head>
  <body>
      <h1>Testpage</h1>
       <p>Stuff....</p>
  </body>
</html>

UA-XXXX-Y needs to be your Tracking ID. More details about analytics.js can be find here.

Setting up the API

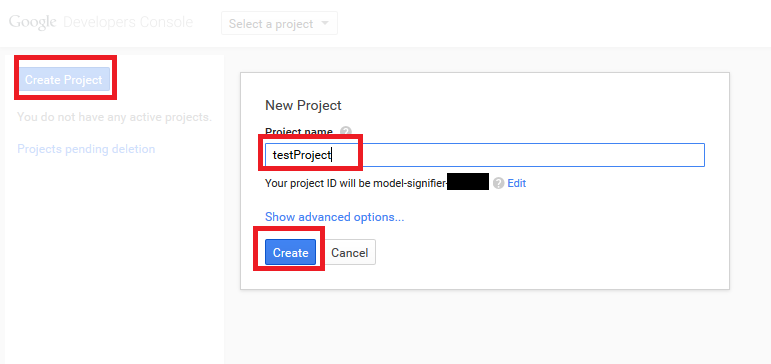

Now create a new project in the Google Developers Console.

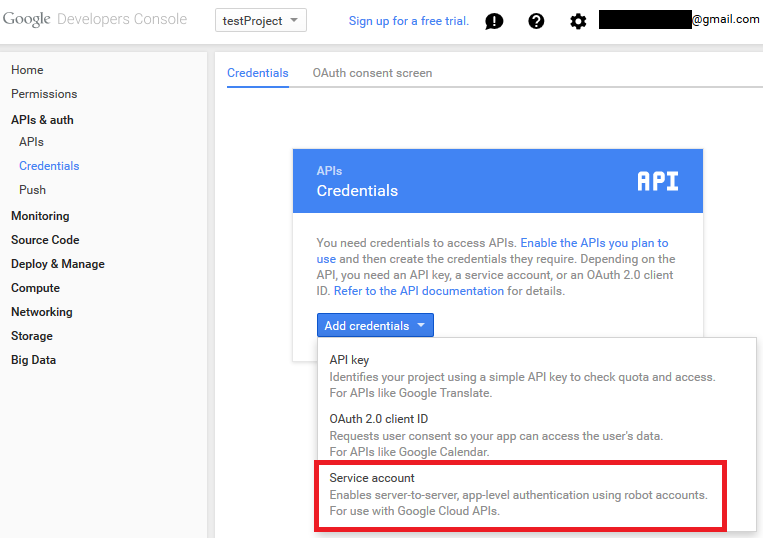

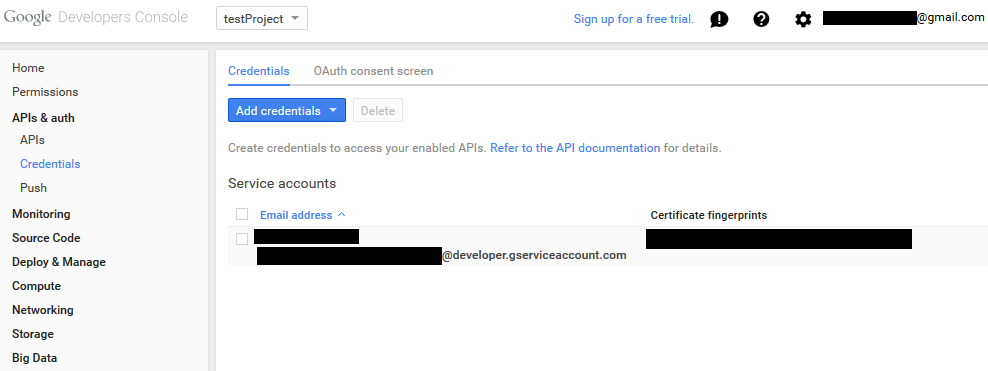

After creating the project click on APIs & auth -> Credentials and Add credentials -> Service account to get the API key.

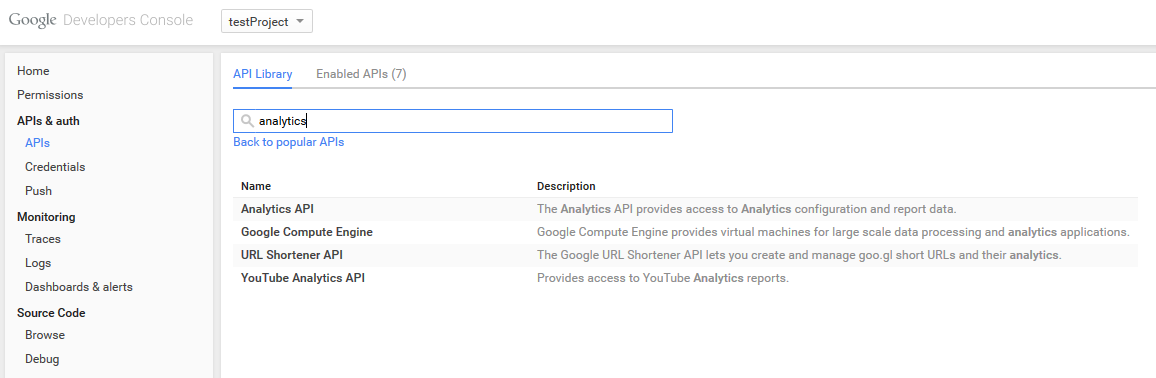

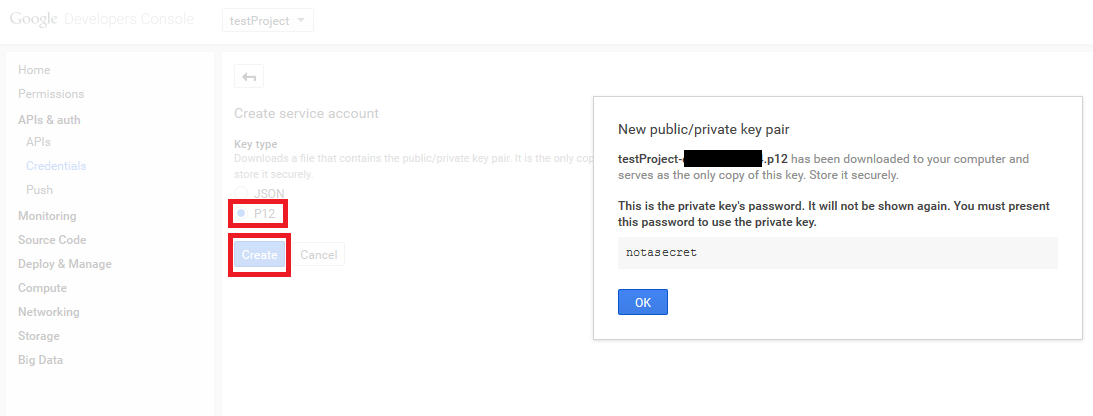

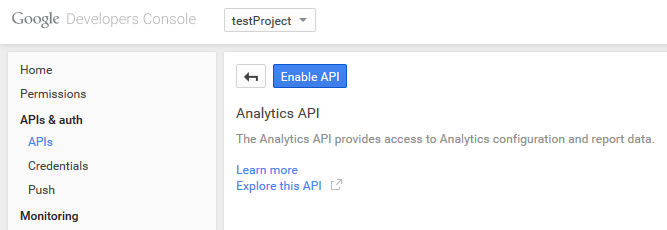

Choose key type P12 and download the key. 4 Copy the email address (XXXXXXXXX@developer.gserviceaccount.com) from the following view. 5.Enable the Analytics API by switching to APIs & auth -> APIs and search for analytics.

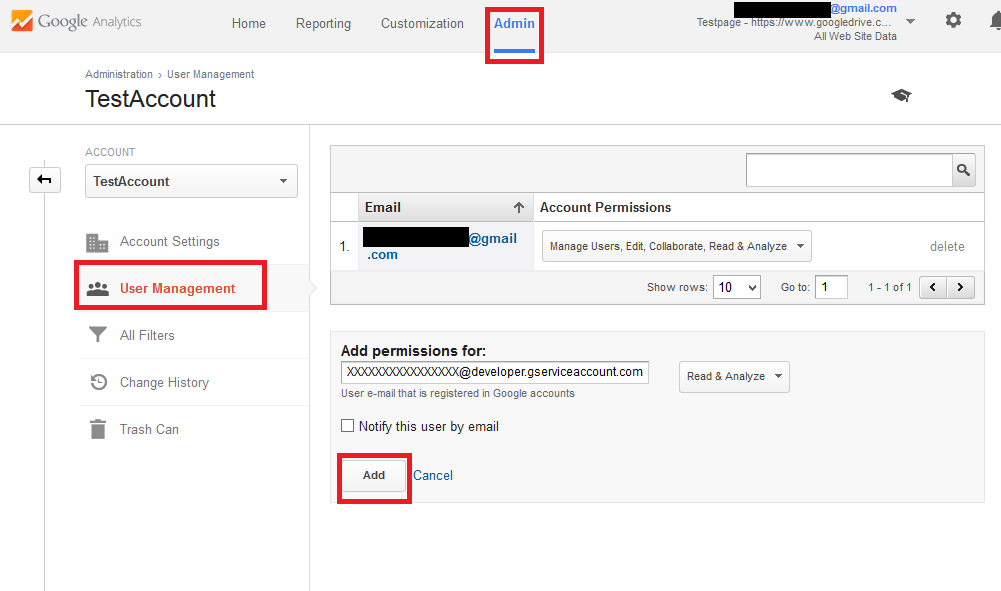

Switch to the Analytics Account and add a new user in the Admin panel. More details about adding and modifying users can be found here.

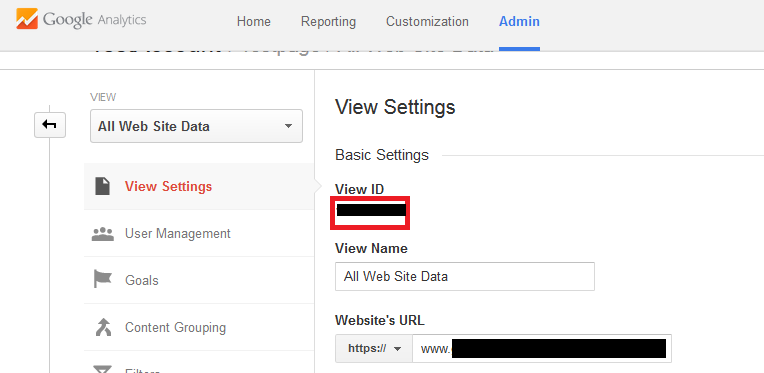

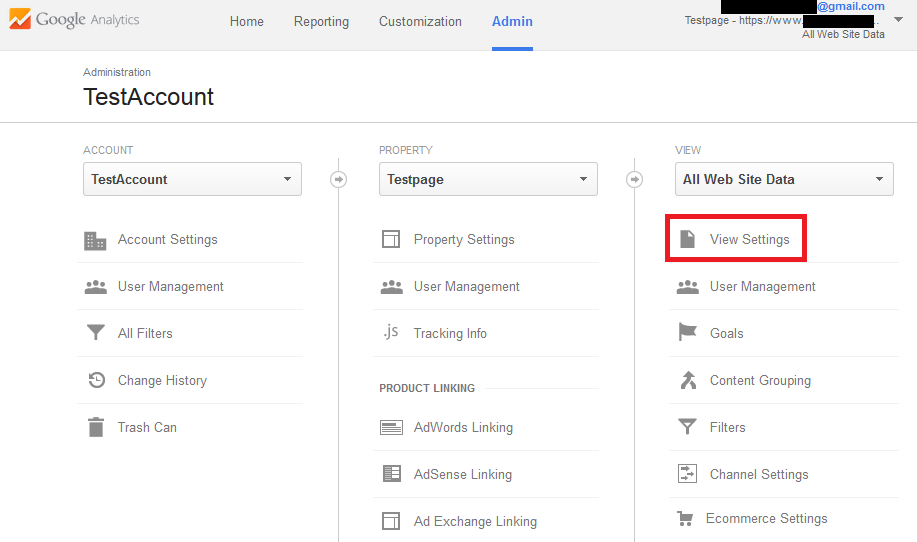

Go to the View Settings and copy the View ID for later.
Convert the p12 file with OpenSSL to a pem file. The password should be notasecret (see step 3 of this section). OpenSSL for windows can be found here.
```
  openssl pkcs12 -in XXXXX.p12 -nocerts -nodes -out testProject.pem
```

Note: After setting up Analytics and the Developer Console it can take some time until page visits are shown in Google Analytics. You can check that by visiting you page and checking it in the Dashboard of Analytics.

Using Node.js to transfer the data to NetCrunch

This script requires googleapi and http. You can install these packages with npm.
```
npm install googleapis http
```

Create a new JavaScript file "googleanalytics.js" and copy the *.pem file into the same folder as the script. You need to modify the following variables: SERVICE_ACCOUNT_EMAIL (Service Account Email Address, see step 4 of this section) SERVICE_ACCOUNT_KEY_FILE (The path to the *.pem file, if you stored it in the same directory as the googleanalytics.js you don’t need to modify the path just the name of the file) ID (View ID, see step 7) NCAPIKEY (The API key set in NetCrunch) NCSERVER (Address of you NetCrunch server)

var    http = require('http'),     googleapis = require('googleapis'),    JWT = googleapis.auth.JWT,
         analytics = googleapis.analytics('v3'),

//   add here the service account email address
     SERVICE_ACCOUNT_EMAIL = "XXXXXXXXXX@developer.gserviceaccount.com",

//   the key created in the google developer console
     SERVICE_ACCOUNT_KEY_FILE = __dirname + '/testProject.pem',

//   View ID
    ID = '107091566',

//   Your NetCrunch API key
     NCAPIKEY = "MTQ1Q0Y0M0M=xxxx",

//   Address of the NetCrunch server
     NCSERVER = '192.168.2.4',

authClient = new JWT(SERVICE_ACCOUNT_EMAIL, SERVICE_ACCOUNT_KEY_FILE, null,
    ['https://www.googleapis.com/auth/analytics.readonly']
);

authClient.authorize(function (err, tokens) {
'use strict';

if (err) {
    console.log(err);
    return;
}

//  request to google analytics, show the pageviews from today
analytics.data.ga.get({
    auth: authClient,
    'ids': 'ga:' + ID,
    'start-date': 'today',
    'end-date': 'today',
    'metrics': 'ga:pageviews'
}, function (err, result) {
    console.log(err);
    console.log(result);
    var pageviews = result.totalResults;

    //creating json data which will be send to NetCrunch
    var jsonData = JSON.stringify({
        retain: 6,//time to keep the information alive if no new data is arriving
        apikey: NCAPIKEY,
        counters: {
            "Homepage/Views": pageviews
        }
    });

    //sending data to NetCrunch
    var options = {
        hostname: NCSERVER,
        port: '80',
        path: '/ncintf/rest/1/openmon/update',
        method: 'POST',
        headers: {
            'Content-Type': 'application/json',
        }
    };
    var req = http.request(options, function (res) {
        console.log('STATUS: ' + res.statusCode);
        console.log('HEADERS: ' + JSON.stringify(res.headers));
        res.setEncoding('utf8');
        res.on('data', function (chunk) {
            console.log('Response: ' + chunk);
        });
    });

    req.write(jsonData);
    req.end();
    console.log(JSON.parse(jsonData));
  });
});

Now you just need to configure the Open Monitor to display the data.

To get more information about functionalities of Analytics read about Analytics Reporting.
