Simplifying Network Management: Network Ports and Interfaces Explained

Learn when and why to monitor ports, device ports, and interfaces for optimized network performance and security.

This article clarifies the distinctions between communication ports, device ports, and network interfaces, and offers insights into when and why to monitor each, ensuring you have the tools you need to optimize network performance, bolster security, and keep your network running smoothly.

Defining communication ports, device ports, and interfaces

Port monitoring and interface monitoring are applied in different situations and answer specific questions or address particular use cases within network management. To better understand these concepts, it's important to distinguish between communication ports in networks, device ports, and network interfaces:

Communication Port in Networks:

A communication port in networks refers to a specific endpoint or channel for communication in a network. These ports are used to identify and differentiate services and applications running on a device. In the context of the OSI model, they operate at the transport layer (Layer 4). Each port is associated with a numeric identifier. Ports work in conjunction with protocols to facilitate the transfer of data between devices. Ports are associated with IP addresses to allow multiple services or applications to operate simultaneously on a single device.

There are two main categories of ports:

• Well-Known Ports: These ports range from 0 to 1023 and are reserved for widely used services, such as HTTP (port 80), HTTPS (port 443), FTP (port 21), and others.
• Registered Ports: These ports range from 1024 to 49151 and are used for applications and services registered with the Internet Assigned Numbers Authority (IANA).

Device Port:

A device port refers to a physical or logical connection point (in the case of the virtual switch) on a network device, such as a switch, router, or firewall, where cables or other network links are attached. Device ports are the physical interfaces that allow the device to connect to the network and communicate with other devices. Device ports can be categorized based on the type of connection, like Ethernet ports, Wi-Fi interfaces, or serial ports.

Network Interface:

A network interface is a term used to describe the point of connection between a network device and the network medium. It encompasses both the hardware (e.g., network card) and the software components that enable the device to send and receive data on the network. Network interfaces can include Ethernet interfaces, Wi-Fi adapters, virtual LAN interfaces, or even loopback interfaces.

Monitoring scenarios

The methods and protocols used to monitor ports and interfaces depend on the specific goals and tools.

When to Monitor Ports:

Port monitoring involves port scanning that helps in understanding what services are running on these ports. SNMP is used to monitor port status, traffic statistics, errors, and various parameters related to the network ports. The goals of port monitoring include:

Security and Intrusion Detection: Port monitoring is crucial for detecting and analyzing potential security threats. Monitoring specific communication ports can help identify suspicious or malicious traffic patterns. Unusual activities on certain ports might indicate potential security threats or breaches.

Application Performance Optimization: To ensure the optimal performance of a particular application or service, monitoring relevant ports can provide insights into the application's behavior.

Traffic Analysis: Port monitoring helps understand network traffic patterns and volumes passing through each port, including which applications or services are consuming the most bandwidth. This information is vital for identifying potential bottlenecks.

Compliance and Policy Enforcement: Some regulations and compliance standards require monitoring and documenting network traffic. Port monitoring verifies compliance with regulatory requirements and internal policies related to specific port usage.

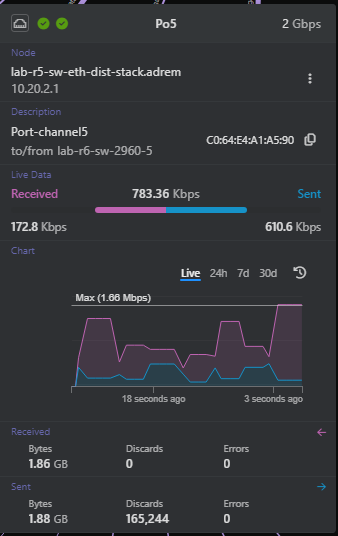

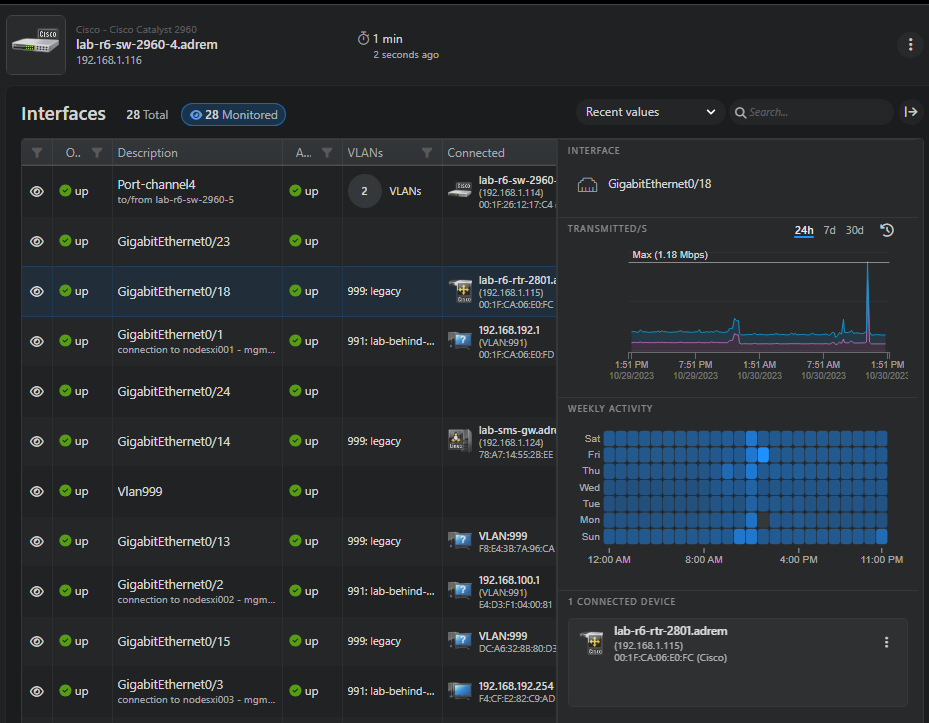

When to Monitor Interfaces:

SNMP is widely used to monitor interfaces, including collecting data on interface status, bandwidth utilization, errors, and other metrics related to the health and performance of network interfaces. Additionally, NetFlow and other flow protocols are used to collect, monitor, and analyze network data, They provide info about traffic flow passing through interfaces, aiding in understanding the source, destination, and type of traffic.

Network Health and Performance: Monitoring device ports and interfaces is essential for maintaining the overall health and performance of network devices. It helps answer questions about availability, bandwidth utilization, and error rates of network connections.

Device Uptime and Availability: Interface monitoring ensures that network devices remain accessible and operational, providing information about the status of device ports and interfaces.

Capacity Planning: Data from interface monitoring assists in making informed decisions about network expansion or optimization by tracking interface utilization over time. The goal is to ensure optimal distribution of network resources.

Fault Detection and Troubleshooting: Monitoring device ports and interfaces helps quickly identify problematic connections or misconfigurations, aiding in network issue isolation and resolution. Unusual behavior on specific ports might indicate hardware or software problems.

Quality of Service (QoS) Management: Interface monitoring ensures that Quality of Service policies are effectively implemented by assessing how well network interfaces adhere to QoS settings.

Conclusion

In essence, port monitoring is more service-specific and oriented toward analyzing traffic or security-related issues associated with individual ports. On the other hand interface monitoring is more comprehensive, focusing on the health, connectivity, and performance of the overall network interface.
